• Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 8
ML
MLm_225mm
Select a row from the table below, then click the add to quote button

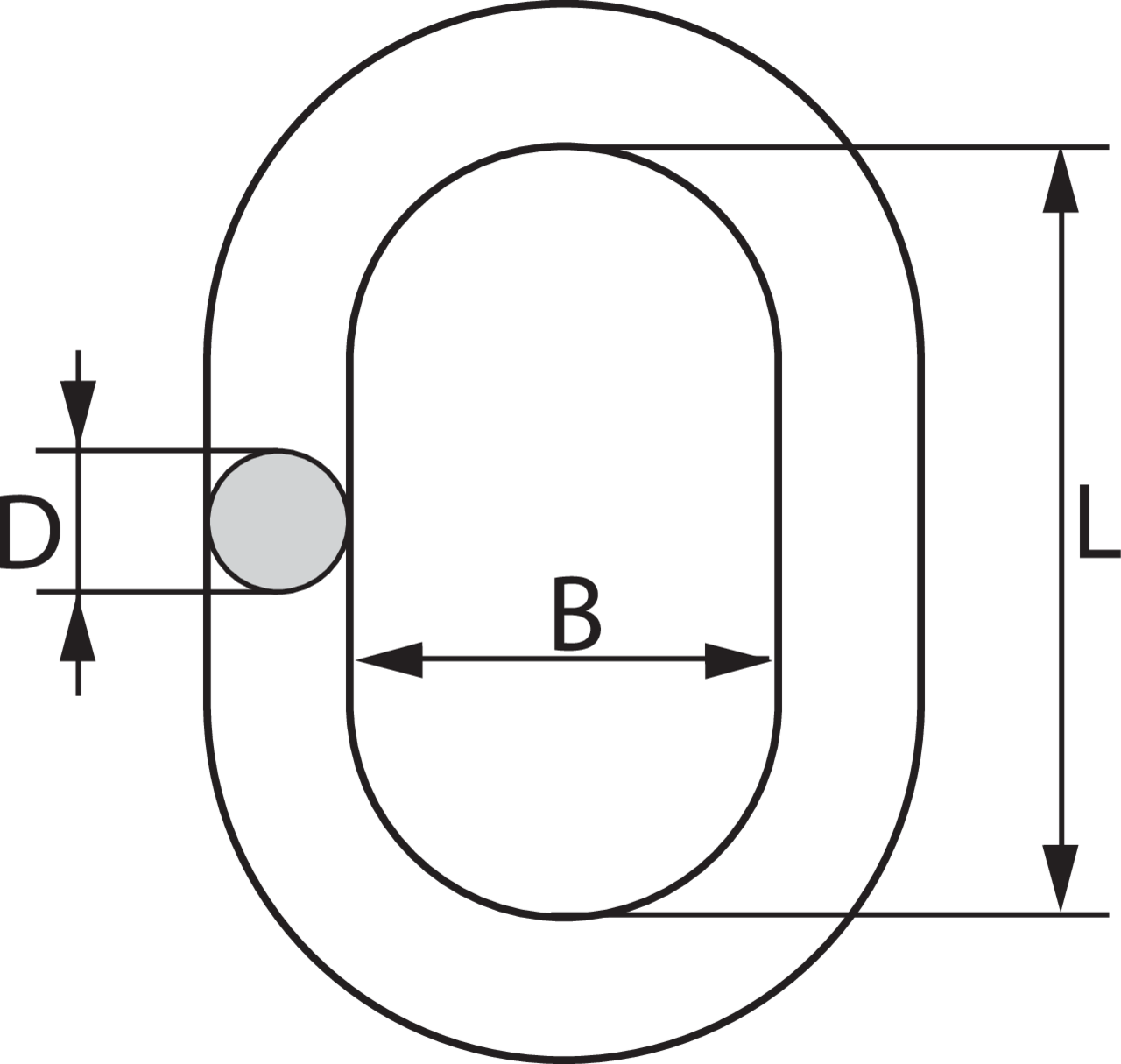

Part Code Code WLL
ton
L
mm
B
mm
D
mm
Weight
kg
CAD
11.018SLR033-87 ML-86-8 2 110 60 13 0.35
11.018SLR033-108 ML-108-8 3.15 120 70 16 0.62
11.018SLR033-1310 ML-1310-8 5.3 135 75 18 0.8
11.0125715 ML-1613-8 8 160 90 22 1.5
11.0125716 ML-1916-8 12 200 120 28 3
04.01ML2319 ML-2319-8 16 235 126 30 4.2
11.018SLR033-2622 ML-2622-8 21.2 260 140 36 6.3
11.0125718 ML-2823-8 27.7 270 158 38 8
11.0125719 ML-3228-8 38 340 180 45 13
11.0125721 ML-3632-8 45 350 190 50 17
04.01ML4536 ML-4536-8 63 350 210 55 22
