WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1
  • Grade: 8
LHL_new[1_225mm
LHLm_new4_225mm
Select a row from the table below, then click the add to quote button

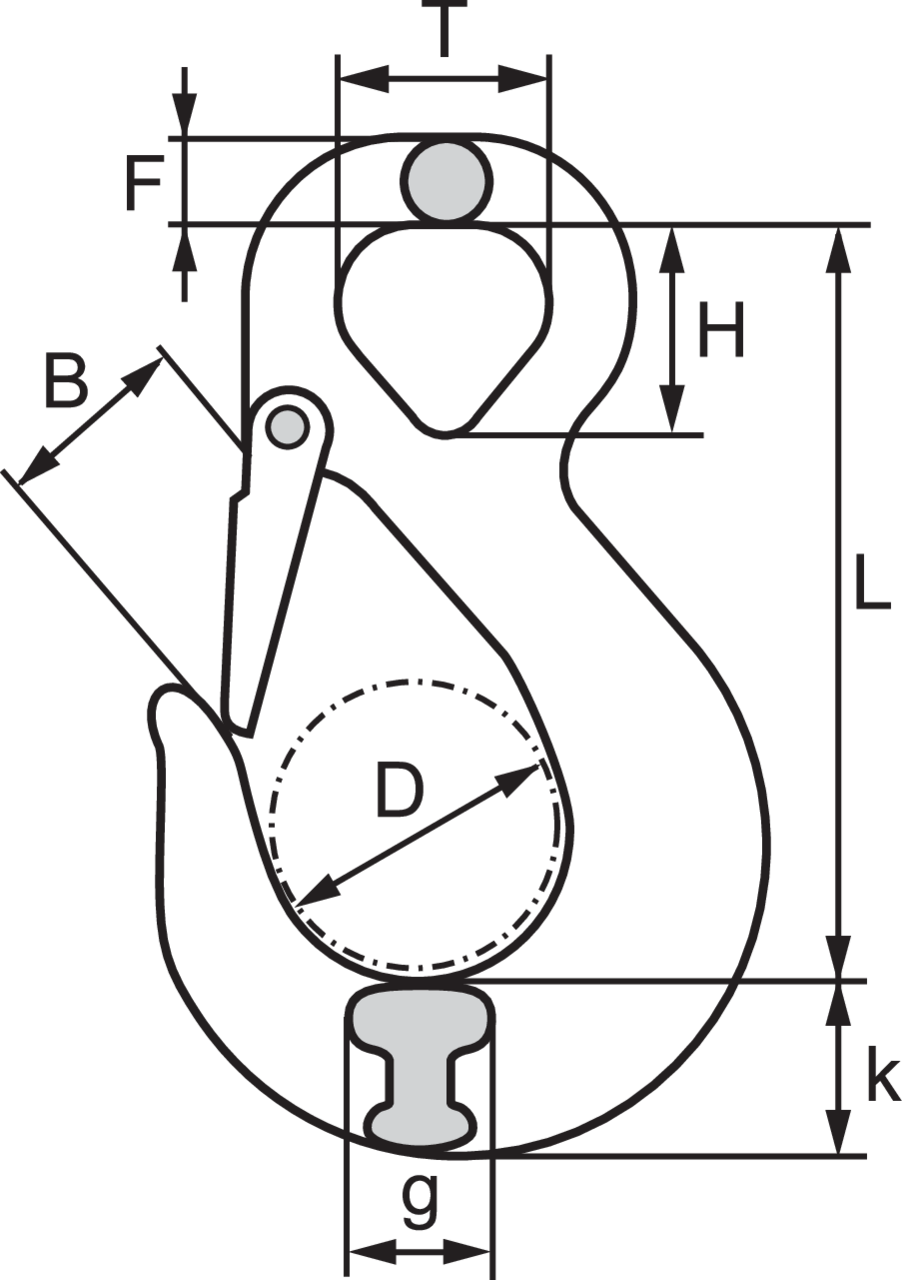

Part Code Code WLL
ton
G (mm) B
mm
D
mm
F
mm
H
mm
L
mm
T
mm
k (mm) Weight
kg
CAD
11.10COL06J LHL-5/6-8 1.12 15 22 34 9 20 86 23 18 0.27
04.52LHL08 LHL-7/8-8 2 20 29 40 10 27 112 27 21 0.55
11.10COL10J LHL-10-8 3.15 26 33 46 13 34 131 33 24 1
11.10COL13J LHL-13-8 5.3 30 40 52 17 44 152 41 35 1.8
11.10COL16J LHL-16-8 8 34 48 68 19 45 182 51 44 3
04.52LHL20 LHL-18/20-8 12.5 50 50 78 24 52 218 59 50 6
