WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 8
LHCL_225mm
LHCL_m_225mm
Select a row from the table below, then click the add to quote button

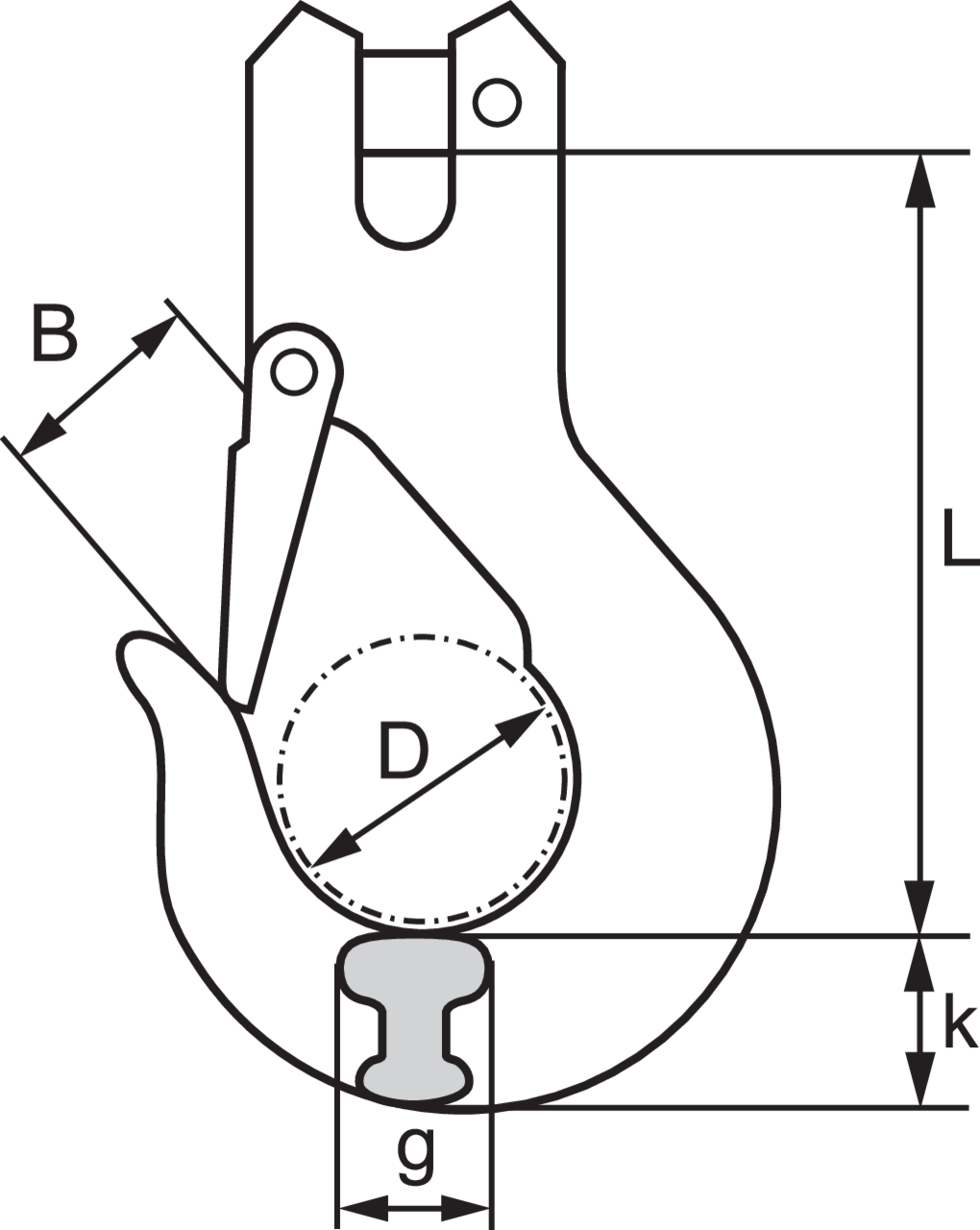

Part Code Code WLL
ton
G
mm
For chain gr 8 Ø
mm
B
mm
D
mm
L
mm
k
mm
Weight
kg
CAD
11.10CCL06JK LHCL-5/6-8 1.12 15 5-6 18 34 74 19 0.28
04.52LHCL08 LHCL-7/8-8 2 20 7-8 29 40 99 21 0.55
11.10CCL10JK LHCL-10-8 3.15 27 10 32 46 120 25 1.1
11.10CCL13JK LHCL-13-8 5.3 30 13 42 52 136 35 1.9
04.52LHCL16 LHCL-16-8 8 36 16 48 68 168 46 3.8
04.52LHCL20 LHCL-18/20-8 12.5 50 18-20 54 78 195 51 6.2

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
