General: Stainless steel eye sling hook, drop-forged. Safety latch available as sparepart.
(AISI 318LN).



  • Material: 1.4462 (AISI 318 LN).
  • Marking: According to standard
  • Finish: Pickled and blasted.
  • Standard: EN 1677-2
  • Safety factor: 4:1.
  • Grade: 6
HSWI-G6

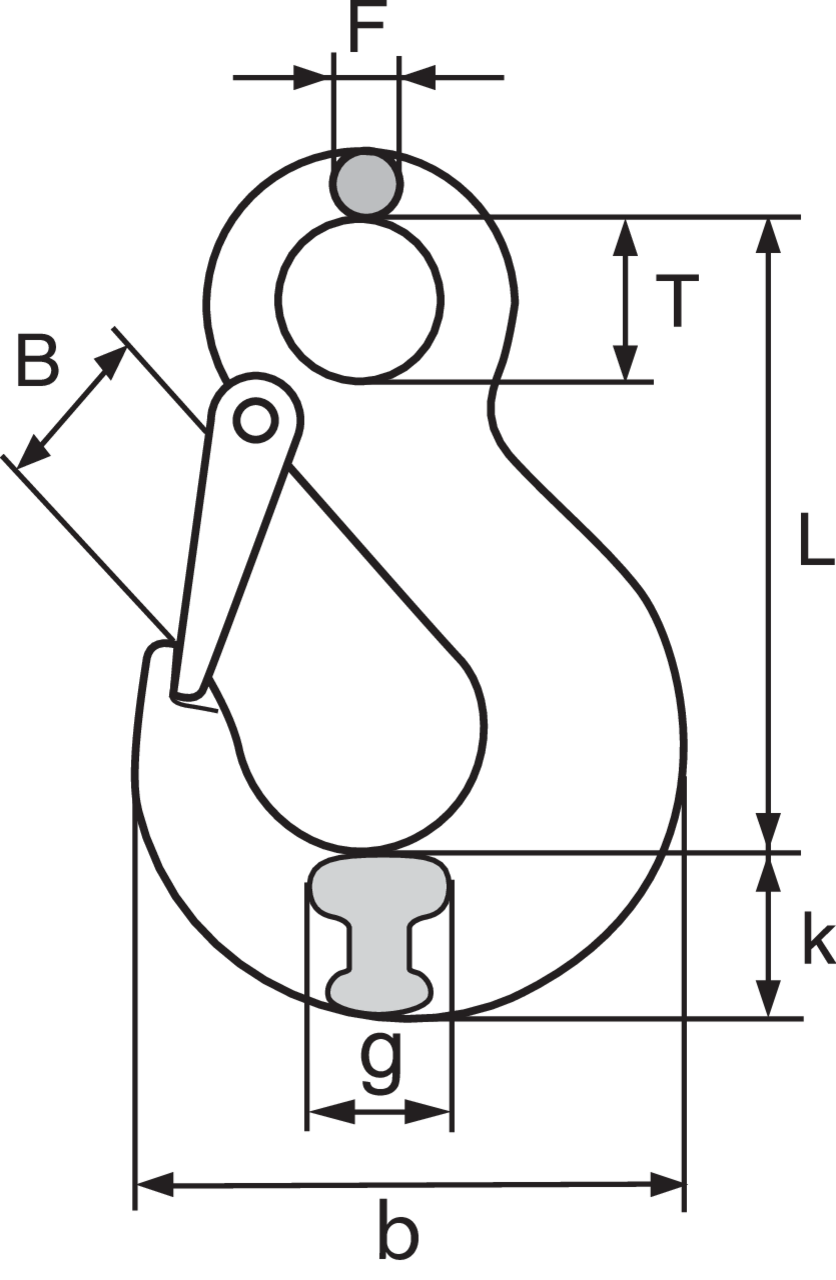

HSWI SS dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
L (mm) k (mm) g (mm) T (mm) F (mm) B (mm) Weight
kg
CAD
11.1492147 HSWI 5/6-6 0.9 84 20 14 21 8 67 0.25
11.1492148 HSWI 7/8-6 1.6 112 29 20 27 13 98 0.7
11.1492149 HSWI 10-6 2.5 133 33 28 37 15 115 1.35
11.1492150 HSWI 13-6 4.25 172 43 35 48 18 147 2.6
11.1492151 HSWI 16-6 6.3 213 51 44 55 24 182 4.85
