pewag

General: Hook with eye, with forged and galvanised safety catch.

  • Material: Alloy steel grade 12.
  • Marking: Pewag or PW, winner pro or 12, H16, CE, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 12
LH_hook

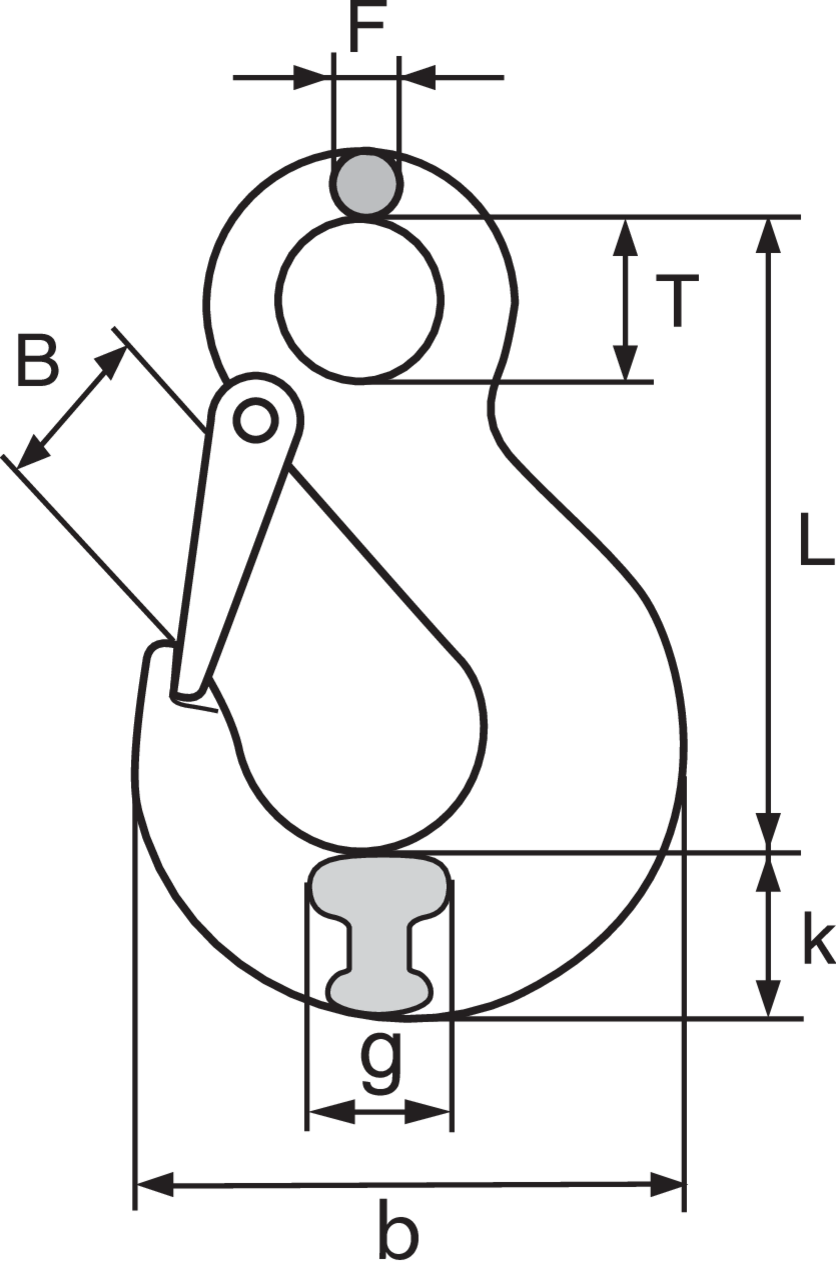

HSWP dwg
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton
LC (kN) B (mm) F (mm) L (mm) T (mm) g k (mm) Weight
kg
11.1288001 HSWP 7/8 3 60 88 11 106 25 19 27 0.65
11.1288003 HSWP 10 5 100 108 16 131 34 26 33 1.29
11.1288005 HSWP 13 8 160 132 19 164 43 33 43 2.43
