General: Universal connecting link consisting of two die-forged identical halves, a bolt and a safety sleeve.

  • Material: Alloy steel grade 12.
  • Marking: Pewag or PW, winner pro or 12, H16, CE, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 12
link
CL_m_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

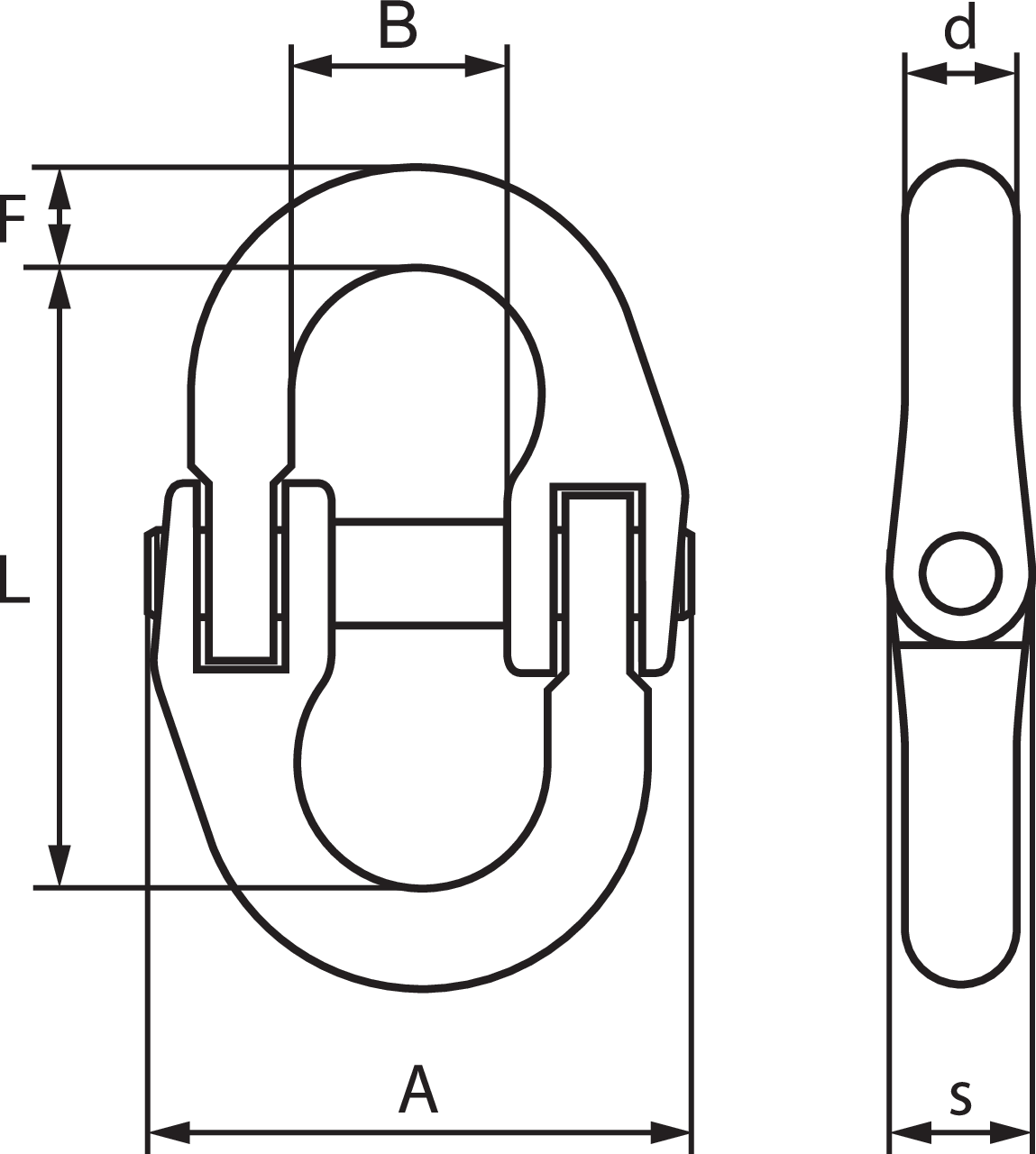

s (mm) LC (kN) L (mm) F (mm) D (mm) A (mm) B (mm) Weight
kg
11.0785823 CWP 7 2.36 16 47 63 12 9 47 17 0.13
11.0787965 CWP 8 3 20 60 62 14 10 58 20 0.3
11.0789315 CWP 10 5 25 100 78 18 13 66 22 0.55
11.0789316 CWP 13 8 34 160 107 22 17 84 25 1.24
11.0750093 CWP 16 12.5 41 128 27 21 120 48 2.26
