pewag

General: Application for general lifting.

  • Material: Alloy steel grade 12.
  • Marking: Pewag or PW, winner pro or 12, H16, CE, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 12

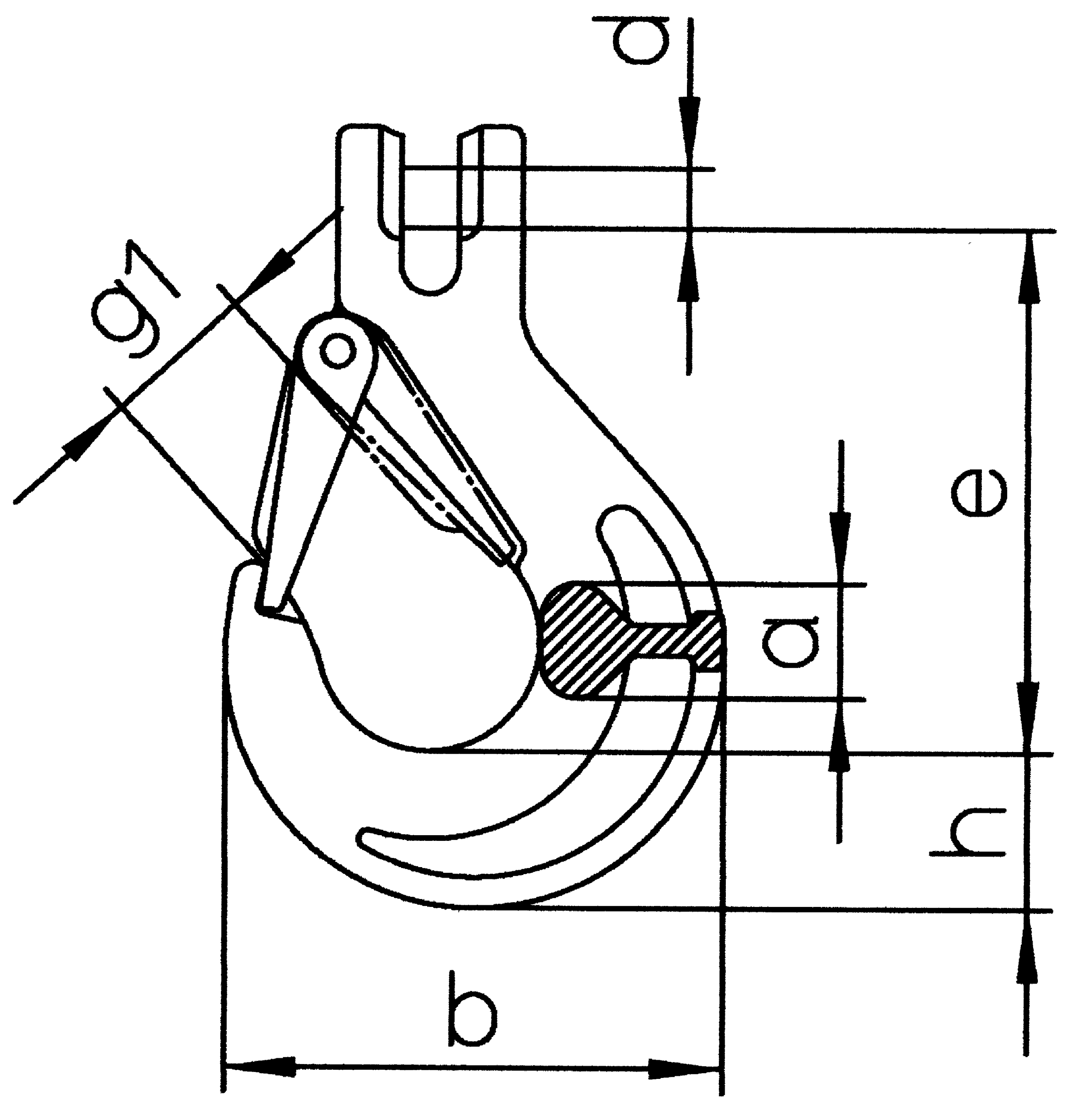

KHSWP_Bemassung_neu_2014
KWB_HKSS1
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton
g1 (mm) Max LC** (kN) LC (kN) e (mm) h (mm) A (mm) D (mm) B (mm) Weight
kg
CAD
11.1218504 KHSWP 7 2.36 36 47 105 26 19 9,5 101 0.85
11.1211598 KHSWP 8 3 38 60 105 26 19 10,7 101 0.85
11.1218463 KHSWP 10 5 41 100 121 33 26 14 118 1.68
11.1218475 KHSWP 13 8 49 160 148 43 30 17,5 147 2.99
11.1218481 KHSWP 16 12.5 59 - 173 51 35 21 176 5.1
