At least 25% greater WLL than traditional Grade 8 products.
Rotate when loaded.
Proof load tested: at 2.5 times the WLL with certification for each batch manufactured.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Magnaflux crack detection is performed 100% on each batch.
Built with ball bearing and enables full swivel feature under load.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard
  • Temperature range: Tempering temperature minimum 400°C .
  • Finish: Blue painted.
  • Standard: EN 1677-3
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

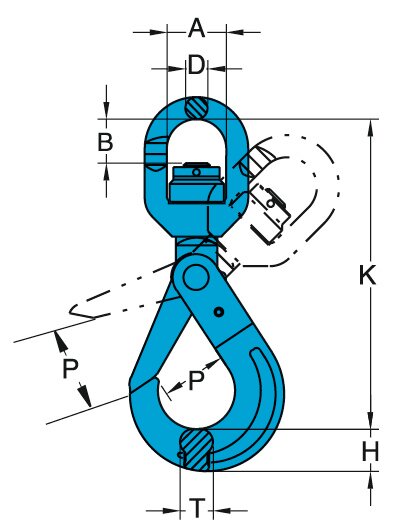

Part Code WLL
ton
EWL For chain gr 10 Ø
mm
A
mm
B
mm
D
mm
H
mm
K
mm
P
mm
T
mm
Weight
kg
CAD
11.16X-027N-06 1.4 149 6 32 22 12 19 149 28 15 0.7
11.16X-027N-07 2.5 186 7.8 36 29 13 24 186 34 20 1.2
11.16X-027N-10 4 218 10 41 34 16 30 218 44 26 2
11.16X-027N-13 6.7 276 13 46 43 21 39 276 51 30 4.1
11.16X-027N-16 10 329 16 61 50 23 49 329 60 36 7.2
11.16X-027N-20 16 387 20 74 82 25 65 387 70 53 13
11.16X-027N-22 19 457 22 97 95 33 63 457 80 49 20
11.16X-027N-26 26.5 535 26 123 115 42 69 535 99 56 33
