Terrier

General:
Clamp for vertical lifting and transporting of all plates, blocks and structures with parallel sides without marking, scratching and or damaging the material surface. Perfect for lifting materials such as (stainless) steel, aluminum, nature stone, composite, painted materials, wood, glass, plastic, etc .The clamp is locked in the open position. To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards. When laying down the load, the clamp automaticly locks itself open.

Features:

  • 2 special synthetic anti-friction pads to guarantee non-marking.
  • Lightweight design and easy to use.
  • Tough quality heavy duty body.
  • Maintenance-friendly, easy to exchange parts. Parts available upon request.
  • No minimal WLL needed.
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: - 10°C to +30°C.
  • Standard: EN 13155
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

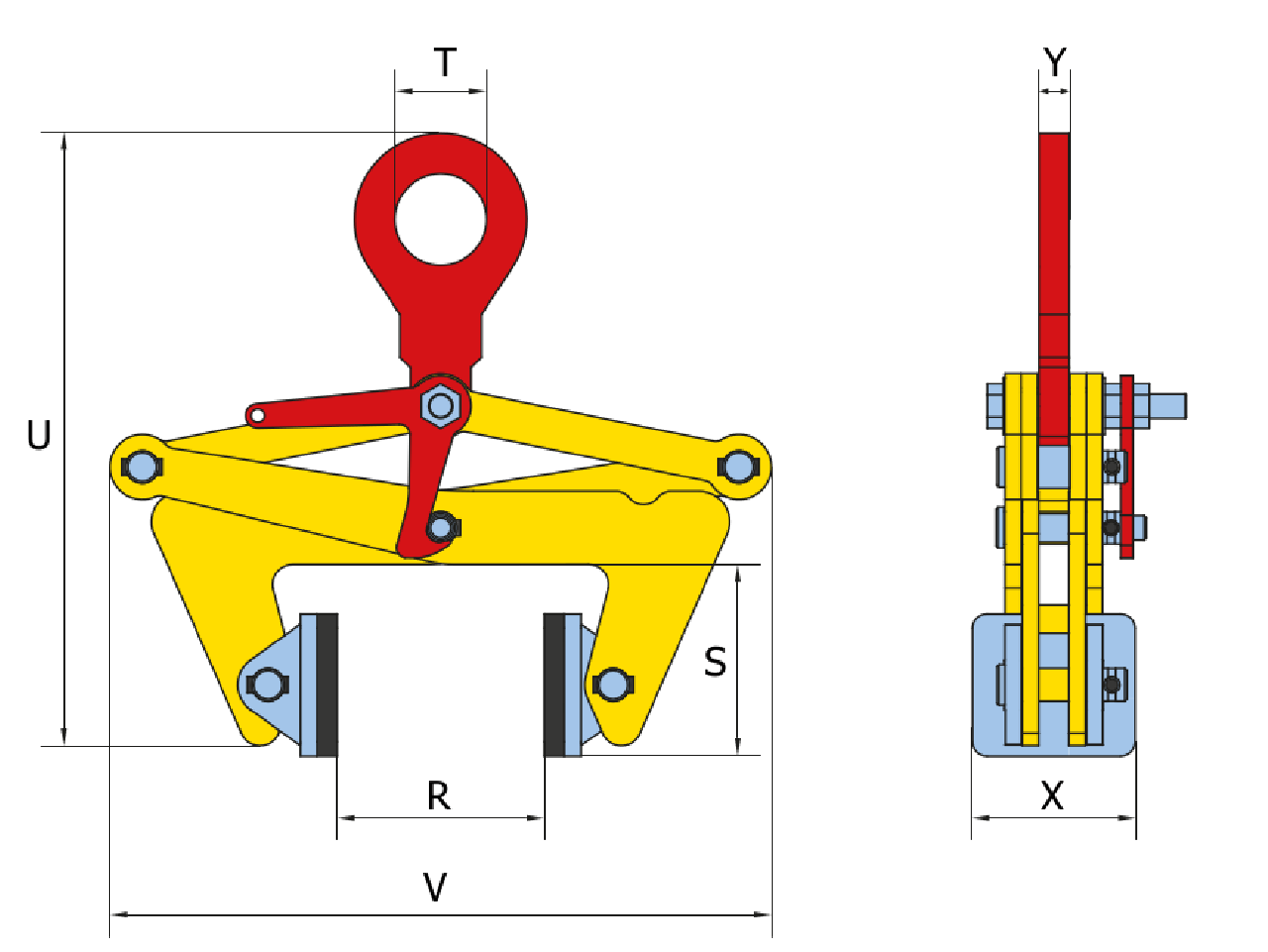

Jaw opening (mm) V min-max U min-max S (mm) T (mm) X (mm) Y (mm) Weight
kg
CAD
16.01801005 0.5 TBLC 0.5 30-110 270 - 325 305-460 95 45 80*70 15 7
16.01801010 1 TBLC 1 100-230 425 - 530 380-655 120 45 80*70 15 12.3
16.01801020 2 TBLC 2 220-360 580 - 675 410-735 140 45 80*70 15 18
16.01801030 3 TBLC 3 350-500 725 - 835 530 - 900 178 64 100*90 16 33
