General: Barrel grab for lifting, handling and transporting of (oil)drums, where the drums have to stay in a horizontal position.

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Standard: EN 13155
  • Safety factor: 5:1.
TVKH_Blank
tvkh
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

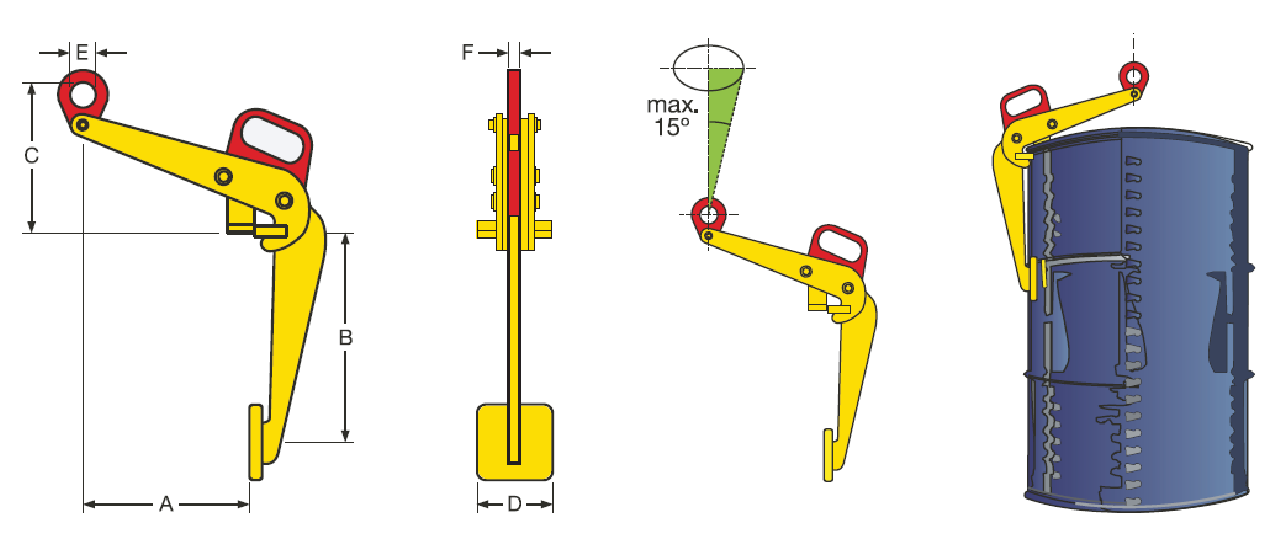

A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight
kg
CAD
16.01828100 TVKH 0.6 300 375 290 80 50 10 7

Download CAD
