Terrier

Screw clamp for vertical and horizontal lifting and transportation of a large variety of steel structures. Can also be attached upside down and be used as a (temporary) lifting point.



  • Marking: According to standard
  • Standard: EN 13155
SCC TEGN 2_2492

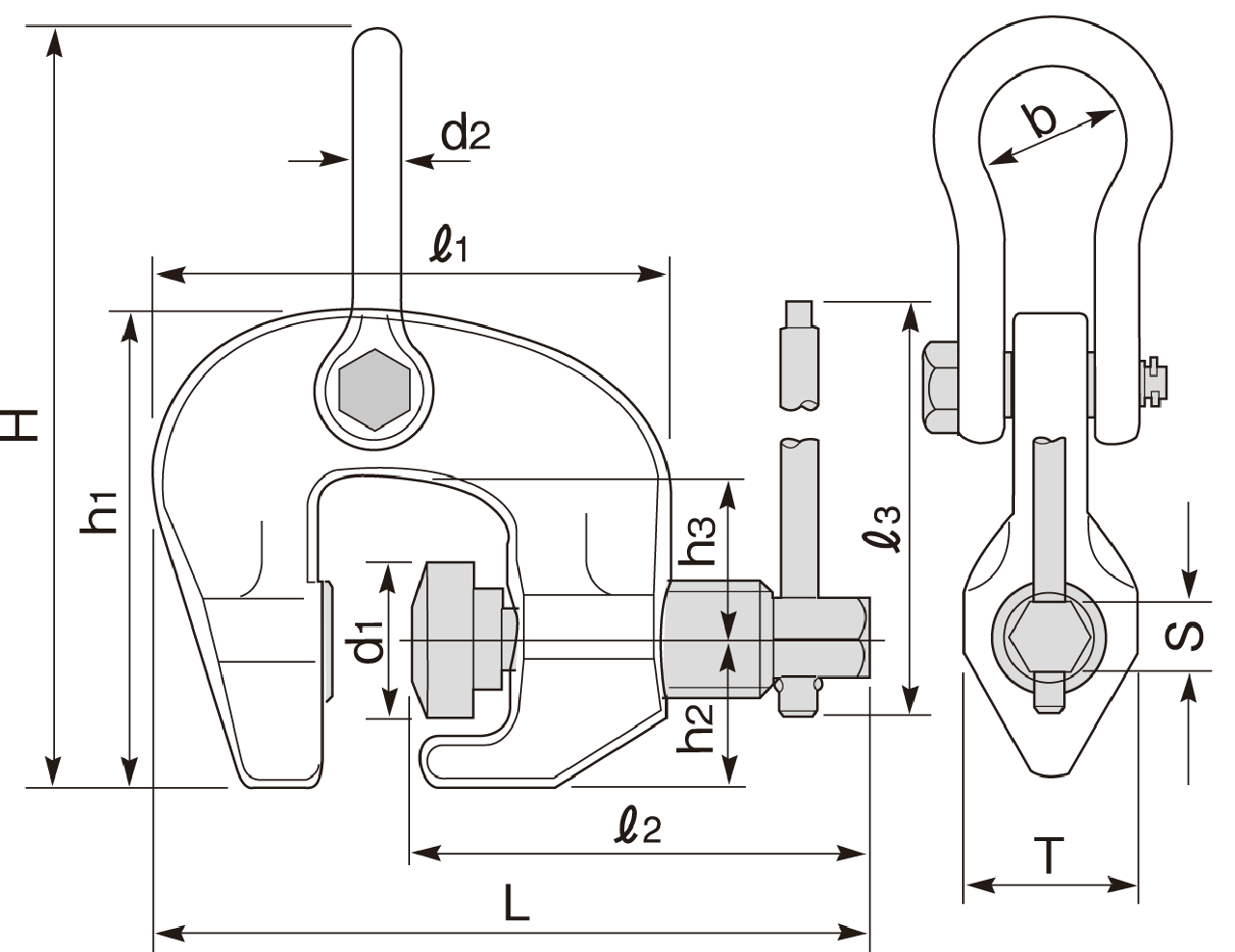

SCC drawing
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw opening
mm
S
mm
I
mm
W
mm
V
mm
Z
mm
U
mm
H
mm
T
mm
X
mm
Weight
kg
CAD
16.01900500 0.5 TSCC 0.5 0-35 18 27.5 26 108 158 211 82 25 27 1
16.01901000 1 TSCC 1 0-40 29 42 40 150 220 232 140 46 46 3.3
16.01862711 1 TSCC-W 1 50-100 88 42 50 225 258 273 190 45 46 6.3
16.01901500 1.5 TSCC 1.5 0-40 29 42 40 150 220 232 140 46 46 3.5
16.01862731 3 TSCC-W 3 25-75 50 49 60 215 250 291 191 50 54 7.8
16.01903000 3 TSCC 3 0-60 38 50 46 190 280 278 184 50 60 7.8
16.01906000 6 TSCC 6 0-100 60 63 70 296 446 390 249 100 75 22
