Terrier

General: Universal screw clamp for vertical and horizontal lifting and transporting of a large variety of steel structures. The TSCC screw clamp is fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece. The articulated lifting eye ensures an effective clamping force in every position.

Proof load: 2 x WLL.

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm
  • Safety factor: 5:1.
TSCC_HR
TSCC_m3
TSCC_m
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

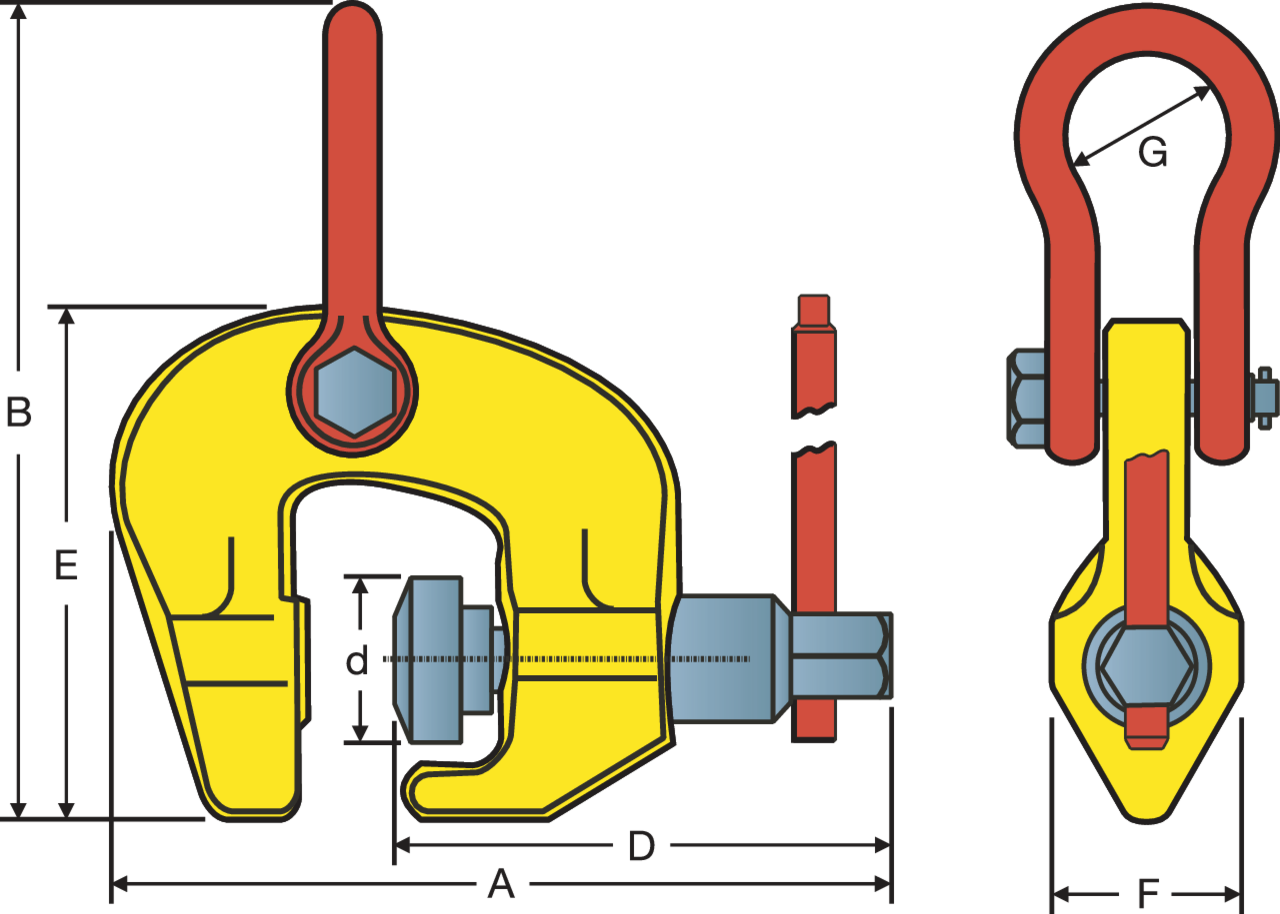

Max. jaw opening (mm) S (mm) I (mm) W (mm) V (mm) Z (mm) U (mm) H (mm) T (mm) X (mm) Weight
kg
CAD
16.01900500 0.5 TSCC 0.5 0-35 18 27.5 26 108 158 211 82 25 27 1
16.01862710 1 TSCC 1 0-40 29 42 40 150 220 232 140 46 46 3.3
16.01862711 1 TSCC-W 1 50-100 88 42 50 225 258 273 190 45 46 6.3
16.01862731 3 TSCC-W 3 25-75 50 49 60 215 250 291 191 50 54 7.8
16.01903000 3 TSCC 3 0-60 38 50 46 190 280 278 184 50 60 7.8
16.01906000 6 TSCC 6 0-100 60 63 70 296 446 390 249 100 75 22
