General: Lifting clamp with adjustable extra large jaw opening for lifting, handling and transporting of packages and single steel plates.
Terrier THSK lifting clamps must always be used in pairs (or multiple pairs).
The adjustable jaw offers wide variety of openings available from 3 to 420 mm.
Working load limit: (WLL) 1500 - 9000kg per pair.

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Standard: EN 13155
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm2).
  • Safety factor: 5:1.
THSK_Blank
THSK_2013
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

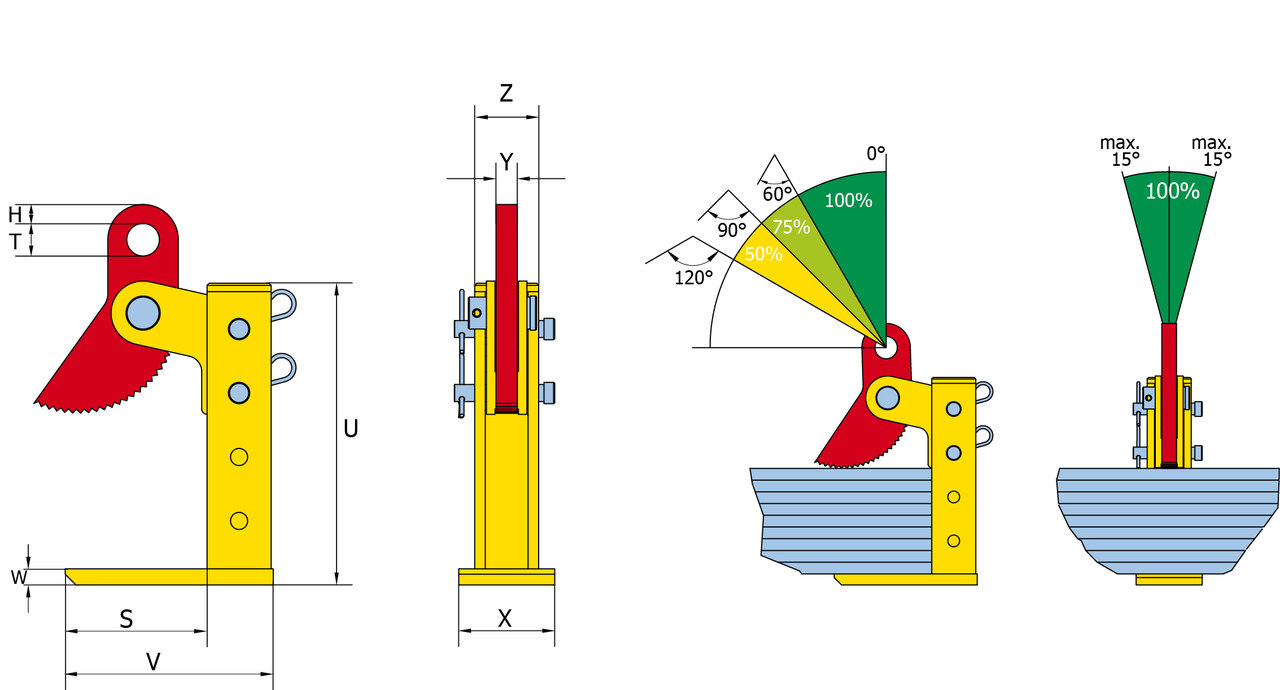

Jaw opening R V (mm) S (mm) W (mm) T (mm) H (mm) U (mm) X (mm) Y (mm) Z (mm) Weight
kg
CAD
16.01815180 1.5 THSK/180 1.5 3-180 201 135 15 30,5 18 289 90 20 60 9.5
16.01815300 1.5 THSK/300 1.5 3-300 201 135 15 30,5 18 409 90 20 60 11
16.01830180 3 THSK/180 3 3-180 241 165 20 30,5 18 296 105 20 69 13
16.01830300 3 THSK/300 3 3-300 241 165 20 30,5 18 416 105 20 69 15
16.01845180 4.5 THSK/180 4.5 3-180 241 165 20 30,5 18 296 105 20 69 13
16.01845420 4.5 THSK/420 4.5 3-420 241 165 20 30,5 18 536 105 20 69 17
16.01860180 6 THSK/180 6 3-180 256 160 25 30,5 18 304 120 20 75 18
16.01860420 6 THSK/420 6 3-420 256 160 25 30,5 18 544 120 20 75 24
16.01890180 9 THSK/180 9 3-180 256 160 25 30,5 18 304 120 20 75 18
16.01890420 9 THSK/420 9 3-420 256 160 25 30,5 18 544 120 20 75 24
