General: For vertical lifting of tubes, bundles of tubes and solid round material.
Safety factor: 5:1



2).

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm
  • Safety factor: 5 : 1.
TTL [new]
TTL_m
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

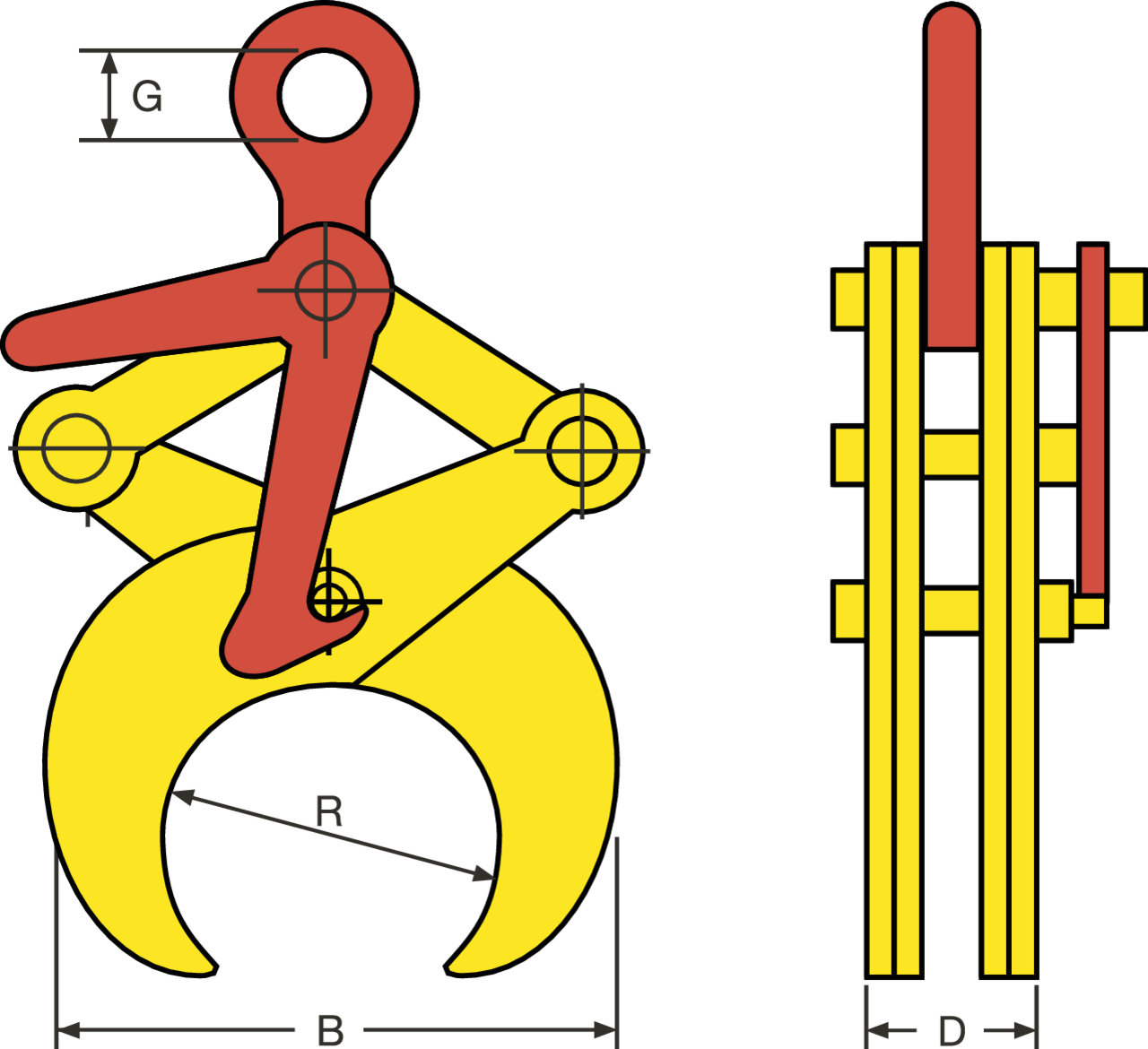

Jaw capacity (R) B max. D (mm) G (mm) Weight
kg
16.01800550 0.5 TTL 0.5 48,3 - 114,3 207 47 45 4.5
16.01801011 1 TTL 1 114,3 - 219,1 170 47 45 9
16.01802021 2 TTL 2 219,1 - 368 610 56 64 31
16.01803036 3 TTL 3 368 - 508 720 56 64 40
