General: Chain for lifting and lashing.
Not to be heat-treated.

  • Material: Alloy steel grade 8.
  • Marking: One link per m chain is marked with grade.
  • Finish: Painted.
  • Standard: EN 818-2
  • Safety factor: 4:1.
  • Grade: 8
Kl_black_new_225mm
KLM_e_225mm
Select a row from the table below, then click the add to quote button

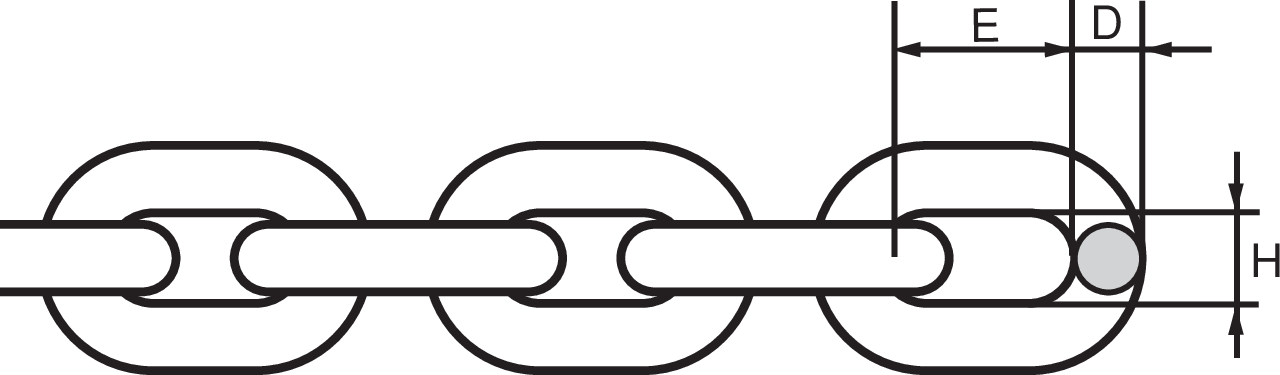

Art No Code Diameter (mm) Breaking force (kN) Breaking force (kP) WLL (ton) LC (kN) E (mm) H (mm) Weight
kg/m
11.648182060P KL-6-8 6 45,2 4,609 1,12 2,200 18 7,8 0.8
11.648182070P KL-7-8 7 61,6 6,281 1,5 3,000 21 9,1 1.1
11.648182080P KL-8-8 8 80,4 8,198 2 4,100 24 10,4 1.4
11.648182100P KL-10-8 10 126 12,848 3,15 6,400 30 13 2.2
11.648182130P KL-13-8 13 212 21,618 5,3 10,200 39 16,9 3.8
11.648182160P KL-16-8 16 322 32,834 8 16,300 48 20,8 5.7
11.648182200P KL-20-8 20 503 51,291 12,5 25,500 60 26 9
11.648182220P KL-22-8 22 608 61,998 15 30,600 66 28,6 11
11.648182260P KL-26-8 26 849 86,573 21,2 78 33,8 15
11.648182320P KL-32-8 32 1,290 131,541 31,5 96 41,6 23
* Lifting applications for safety factor 4:1
** load lashing capacity (LC).
