Weld-on excavator hook for excavator dippers, work machines and vehicles.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to cart button

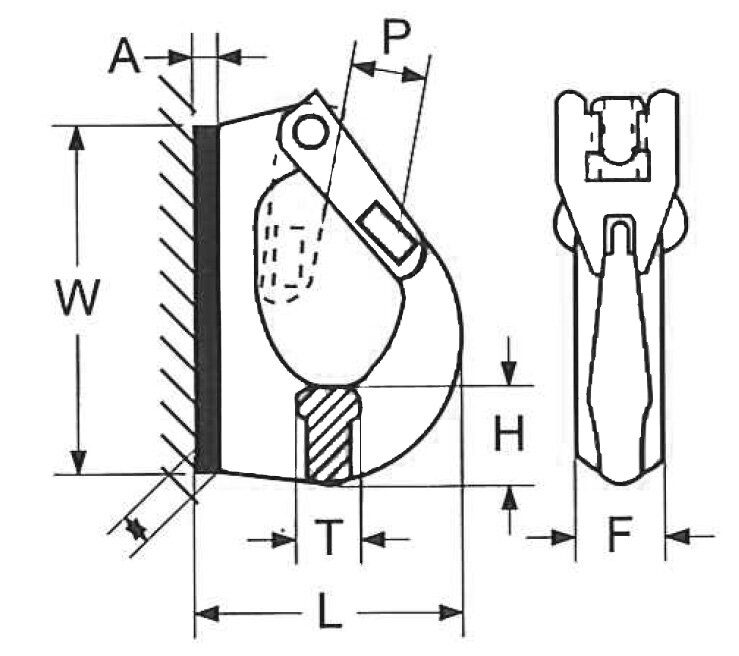

Part Code WLL
ton
A
mm
W
mm
P
mm
T
mm
L
mm
H
mm
F
mm
Weight
kg
11.2825131 2 5 80 25 20 94 24 34 0,8
11.288SLR019-3.0T 3 6 115 30 24 105 30 36 1,2
11.288SLR019-5.0T 5 10 155 34 28 132 43 44 2,5
11.2825134 8 12 160 34 38 135 51 51 3,3
11.2825135 10 15 200 50 39 167 55 53 5,2
