General: Chain for lifting or lashing (other safety factor). Available in 2 different qualities
Star Alloy (SA/S):

Working temperature: max. 200ºC
Grade Marking: "10" on link every 300mm (up to 16mm) others every 900 mm.
Surface: Purple varnished

Star Alloy Plus+ (SAP/S): for working temperatures up to 380°C (Available on request)

Material: Alloy steel.
Marking: According to standard, grade marking "10"
Temperature range: Star Alloy SA/S: -40°C up to 200°C - Star Alloy Plus+ SAP/S: -40°C up to 380°C
Standard: EN 818-2
higher capacity
Warning: Not to be heat treated.

Safety factor: 4:1 for lifting.
Grade: 10

Select a row from the table below, then click the add to quote button

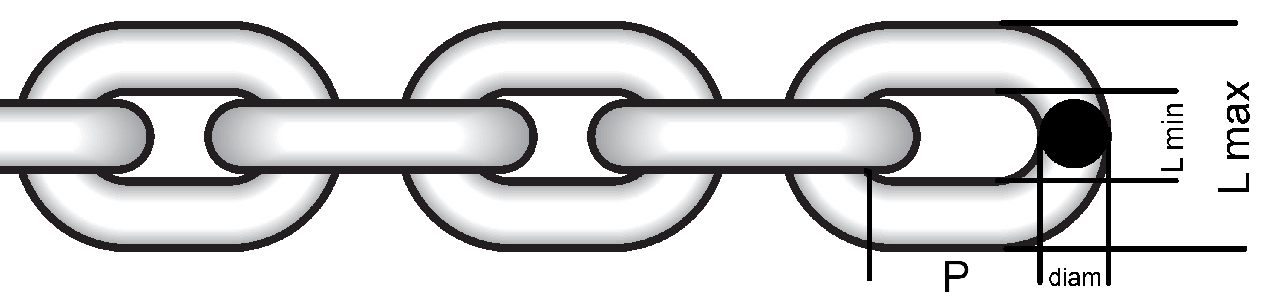

Part Code	Code	Diameter mm	WLL ton	Breaking force kN	L min. mm	L max mm	Pitch P mm	Weight kg/m
11.6570261	SA/S-6	6	1.4	56.5	9	22	18	0.96
11.6570267	SA/S-8	8	2.5	100	11	29	24	1.57
11.6570270	SA/S-10	10	4	157	14	36	30	2.46
11.6570273	SA/S-13	13	6.7	266	18	47	39	4.18
11.6570275	SA/S-16-	16	10	402	22	58	48	6.28
11.6570278	SA/S-19	19	14	567	27	69	57	8.9
11.6570281	SA/S-22-	22	19	760	30	79	66	11.88
