General: Swings more than 180°, rotates through 360° due to its unique ball bearing design. Secured four times against breakage in all load directions.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Easy to measure disposal stage by using with the new WLL tables.
Easy to attach or dismantle due to the forged hexagon shaped body of the Super Point.
Maximum WLL in axial direction when load ring is aligned.
Capable of rotating under load. Do not turn continuously in 90 degree direction at full load.

  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked
  • Finish: Painted.
  • Standard: EN 1677-1
  • Note: Capable of rotating under load. Do not turn continuously in 90 degree direction att full load.
  • Safety factor: 4:1
  • Grade: 10
Product Picture 2
Select a row from the table below, then click the add to cart button

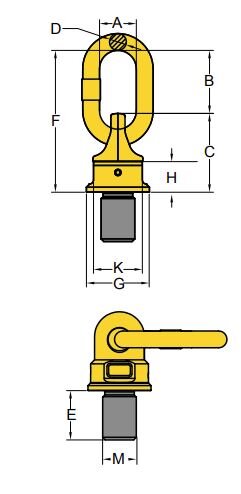

Part Code WLL
ton
Thread
M
mm
Thread length (E)
mm
Pitch DIN13 Torque
Nm
G
mm
C
mm
K
mm
F
mm
D
mm
B
mm
A
mm
Weight
kg
11.428-271-003 0,4 M 8 12 1,25 10 - 40 35 40 30 72 8 32 29 0,2
11.428-271-004 0,6 M 10 15 1,5 10 - 40 35 40 30 72 8 32 29 0,2
11.428-271-006 0,7 M 12 18 1,75 15 - 40 40 45 36 95 10 50 35 0,3
11.428-271-013 1,5 M 16 24 2 45 - 130 46 54 41 104 13 50 38 0,5
11.428-271-020 2,5 M 20 30 2,5 100 - 170 62 68 55 122 13 54 38 1
11.428-271-035 4 M 24 36 3 190 - 280 78 88 70 154 19 66 40 2,2
11.428-271-060 6 M 30 46 3,5 270 - 600 90 120 80 206 22 86 50 4,5
11.428-271-080 10 M 36 55 4 270 - 600 90 120 80 206 22 86 50 4,6
11.428-271-120 13 M 42 64 4,5 350 - 800 98 122 84 235 25 110 65 5,5
11.428-271-130 14 M 48 73 5 350 - 800 98 122 84 235 25 110 65 6,1
11.428-271-140 20 M 52 79 5 350 - 900 120 150 94 270 32 120 70 10,5
11.428-271-160 20 M 56 85 5,5 350 - 900 120 150 94 270 32 120 70 10,7
11.428-271-161 20 M 64 95 6 500 - 1000 120 150 94 270 32 120 70 11,6
  Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5


Lifting Chart 7


Lifting Chart 6 Lifting Chart 8
No of
legs
1
2
1
2
2
2
3-4
3-4
2
3-4
Angle of inclination
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
unsymm.
unsymm.
M 8
0,6
1,2
0.3 (0.4)
0.6 (0.8)
0,4
0,3
0,6
0,4
0,3
0,3
M 10
0,9
1,8
0.45 (0.6)
0.9 (1.2)
0,6
0,4
0,9
0,6
0,4
0,4
M 12
1,2
2,4
0.6 (0.7)
1.2 (1.5)
0,8
0,6
1,2
0,9
0,6
0,6
M 16
2,6
5,2
1.3 (1.5)
2.6 (3)
1,8
1,3
2,7
1,9
1,3
1,3
M 20
4
8
2 (2.5)
4 (5)
2,8
2
4,2
3
2
2
M 24
7
14
3.5 (4)
7 (8)
4,9
3,5
7,3
5,2
3,5
3,5
M 30
10
20
5 (6)
10 (12)
7
5
10,5
7,5
5
5
M 30
12
24
6.7 (6.7)
13.4 (13.4)
9,4
6,7
14,1
10
6,7
6,7
M 36
15
30
8 (10)
16 (20)
11.2 (14)
8 (10)
16.8 (21)
12 (15)
8 (10)
8 (10)
M 42
17
34
13 (13)
26 (26)
18.2 (18.2)
13 (13)
27.3 (27.3)
19.5 (19.5)
13 (13)
13 (13)
M 48
18
36
14 (16)
28 (32)
19.6 (22.4)
14 (16)
29.4 (33.6)
21 (24)
14 (16)
14 (16)
M 52
25
50
20 (20)
40 (40)
28 (28)
20 (20)
42 (42)
30 (30)
20 (20)
20 (20)
M 56
28
56
20 (22)
40 (44)
28 (30.8)
20 (22)
42 (46.2)
30 (33)
20 (22)
20 (22)
M 64
28
56
20 (22)
40 (44)
28 (30.8)
20 (22)
42 (46.2)
30 (33)
20 (22)
20 (22)
M 72
50
100
40 (40)
80 (80)
56 (56)
40 (40)
84 (84)
60 (60)
40 (40)
40 (40)
M 80
50
100
40 (48)
80 (96)
56 (67.2)
40 (48)
84 (100)
60 (72)
40 (48)
40 (48)
M 90
50
100
40 (48)
80 (96)
56 (67.2)
40 (48)
84 (100)
60 (72)
40 (48)
40 (48)
