KWB

Design: Masterlink with shortening hook/link.





WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
kwb_GVK_S4_225mm
kwb_GVK_S4_m_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

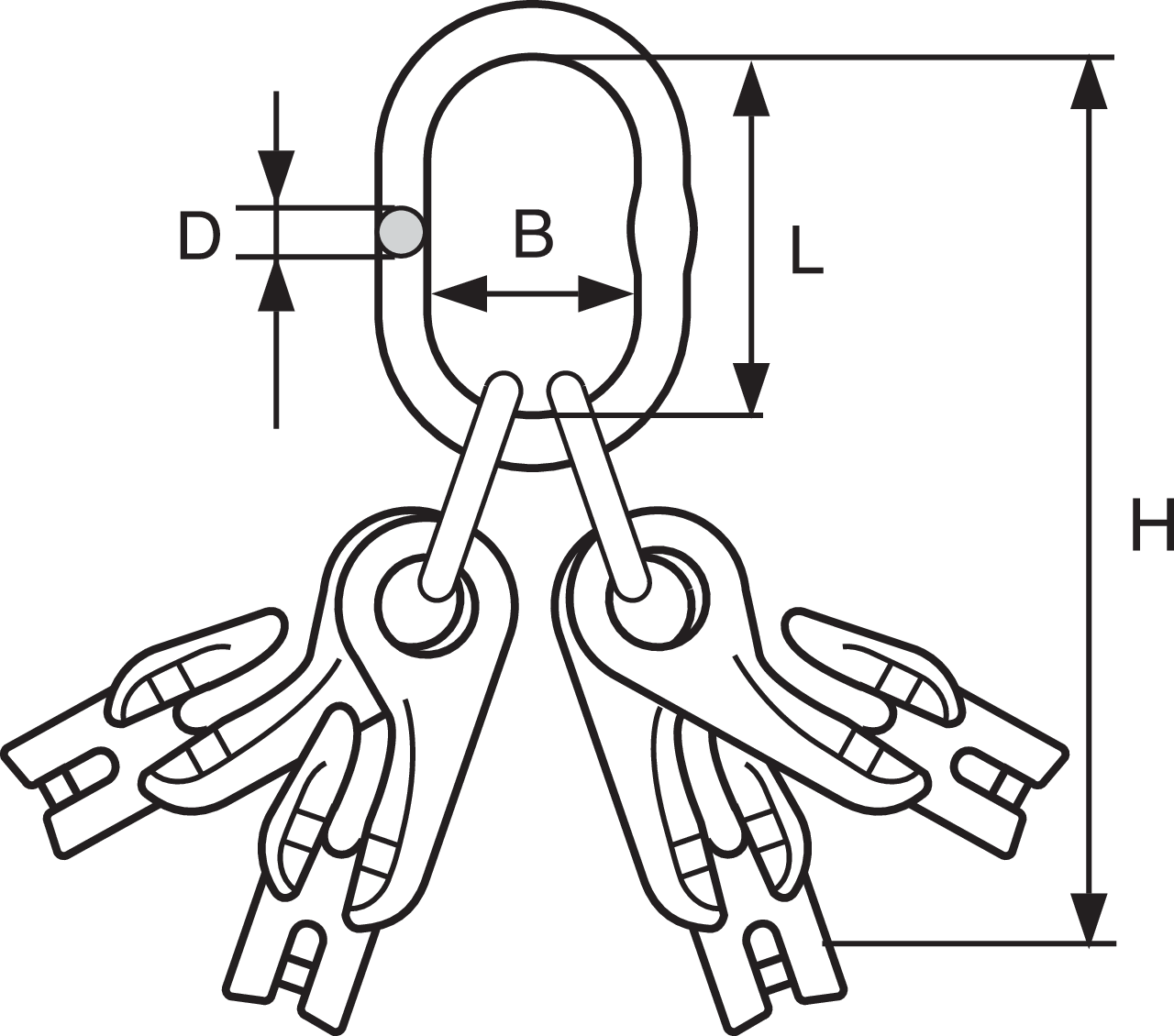

For chain gr 10 Ø (mm) WLL 45-60° (ton) B (mm) D (mm) H (mm) L (mm) Weight
kg
CAD
11.0213826 GTVK/S4-6-10 3 6 2,12 95 19 298 160 2.6
11.0213805 GTVK/S4-7-10 4 7 2,8 110 23 352 160 4.9
11.0213830 GTVK/S4-8-10 5.3 8 3,75 105 23 362 170 4.9
11.0213820 GTVK/S4-10-10 8 10 6 110 27 434 190 9.1
11.0213822 GTVK/S4-13-10 14 13 10 130 33 548 230 17.9
11.0213824 GTVK/S4-16-10 21.2 16 15 150 38 649 275 30.5
