KWB

Design: Masterlink with shortening hook/link.





WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
kwb_GVK_S1_225mm
kwb_GVK_S1_m_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

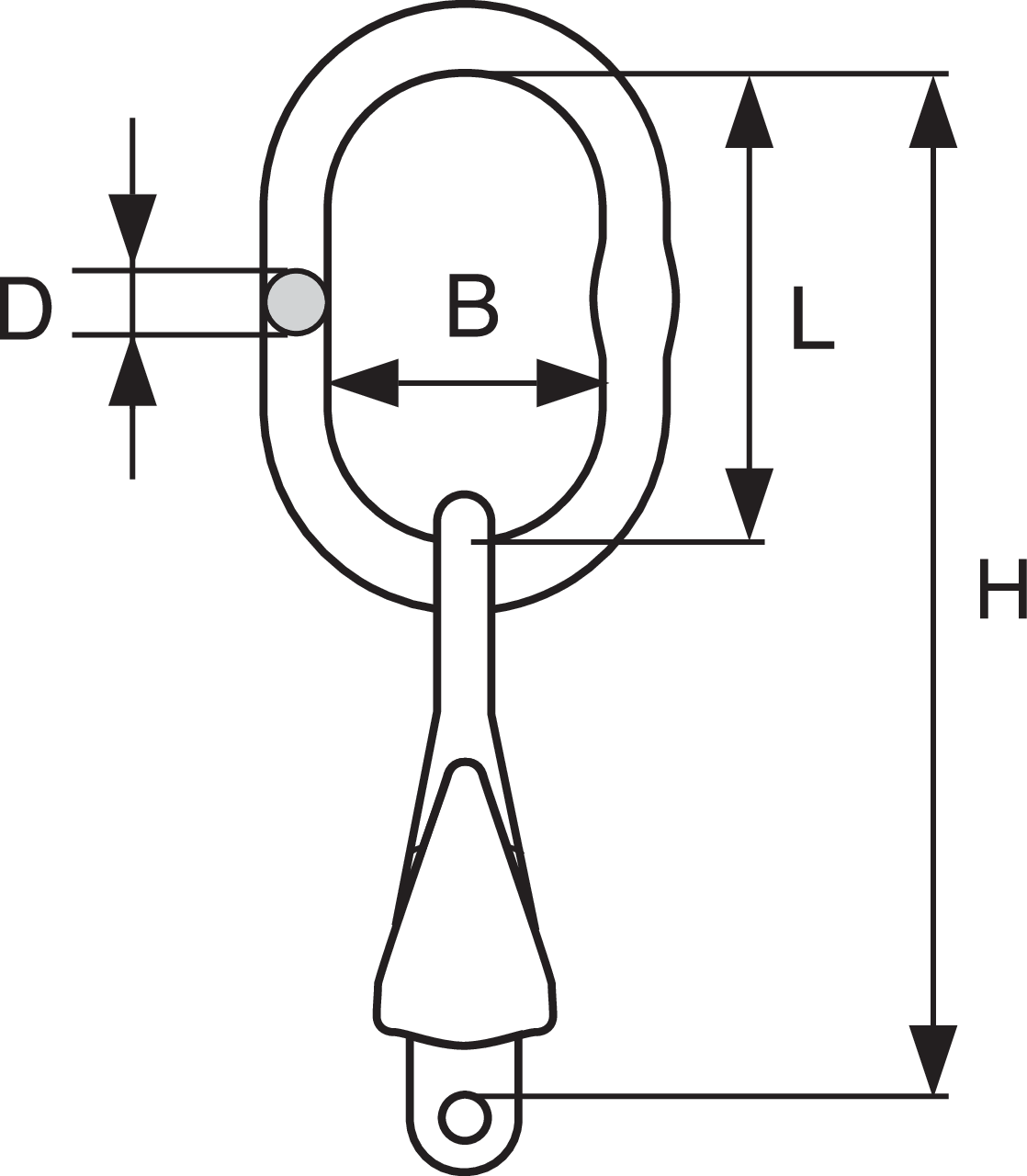

For chain gr 10 Ø (mm) B (mm) D (mm) H (mm) L (mm) Weight
kg
CAD
11.0213760 GTVK/S1-6-10 1.4 6 70 14 204 120 0.74
11.0213804 GTVK/S1-7-10 1.9 7 70 14 242 120 1.1
11.0213814 GTVK/S1-8-10 2.5 8 80 16 262 140 1.3
11.0213808 GTVK/S1-10-10 4 10 95 19 319 160 2.4
11.0213810 GTVK/S1-13-10 6.7 13 105 23 373 170 4.4
11.0213812 GTVK/S1-16-10 10 16 110 27 424 190 7.5
