KWB






WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
kwb_GL_S2_225mm
kwb_GL_S2_m_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

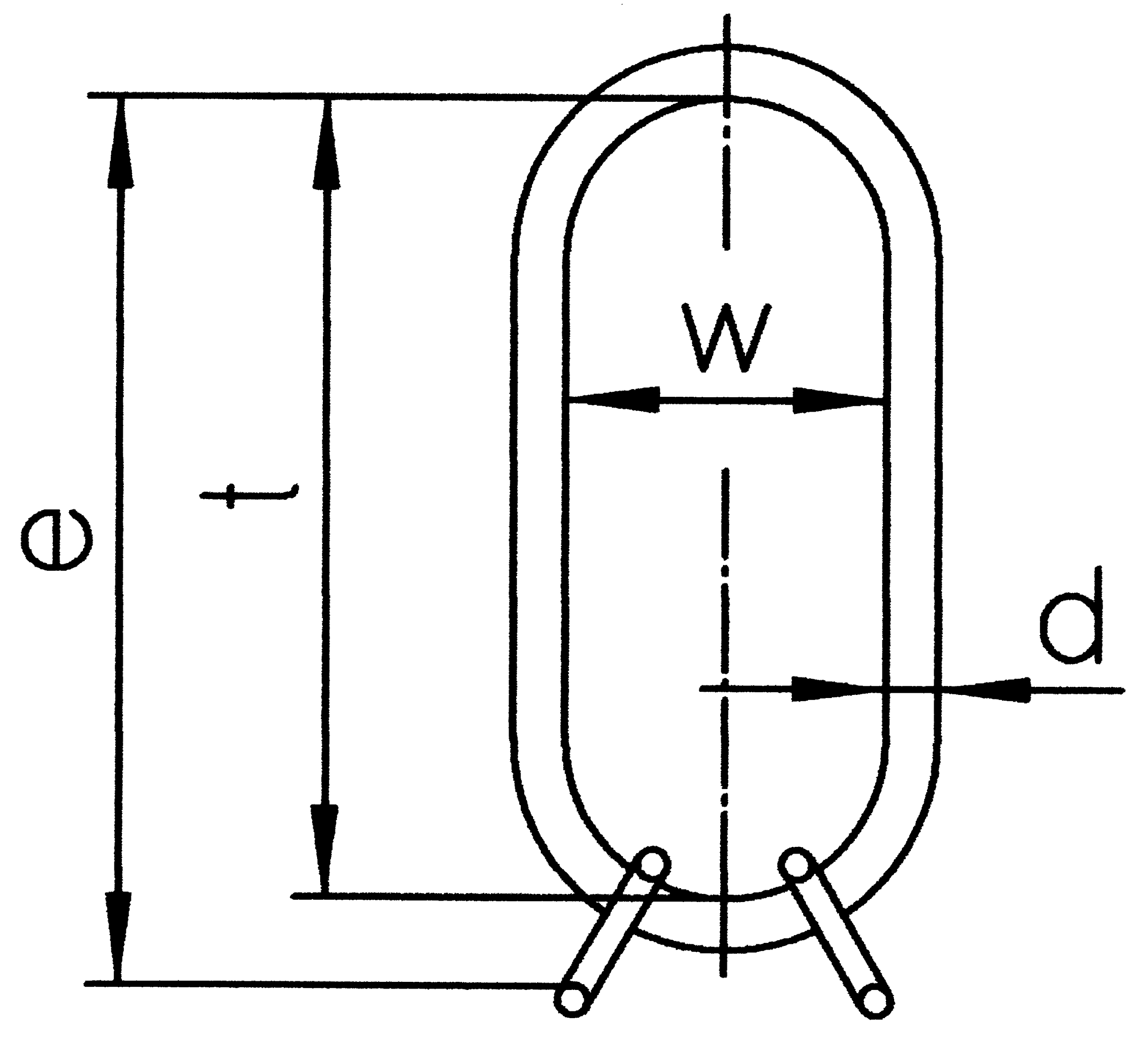

W (mm) For chain gr 10 Ø 2 leg (mm) For chain gr 10 Ø 3-4 leg (mm) Usable with a crane hook DIN 15401 No. up to D (mm) e (mm) t (mm) Weight
kg
CAD
11.0270081 GL/S2-6/7/8/4-6-10 3.55 180 6-7-8 6 25 23 394 340 3.5
11.0270065 GL/S2-10/4-7/8-10 5.6 180 10 7-8 25 27 410 340 5.1
11.0270074 GL/S2-13/4-10-10 9.5 180 13 10 25 33 425 340 8
11.0270076 GL/S2-16/4-13-10 14 180 16 13 25 40 455 340 12.3
11.0270079 GL/S2-19/4-16-10 21.2 180 19 16 25 40 480 340 13.8

Download CAD
