KWB






WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1.
  • Grade: 10
kwb_A_S_225mm
kwb_A_S_m_225mm
Select a row from the table below, then click the add to quote button

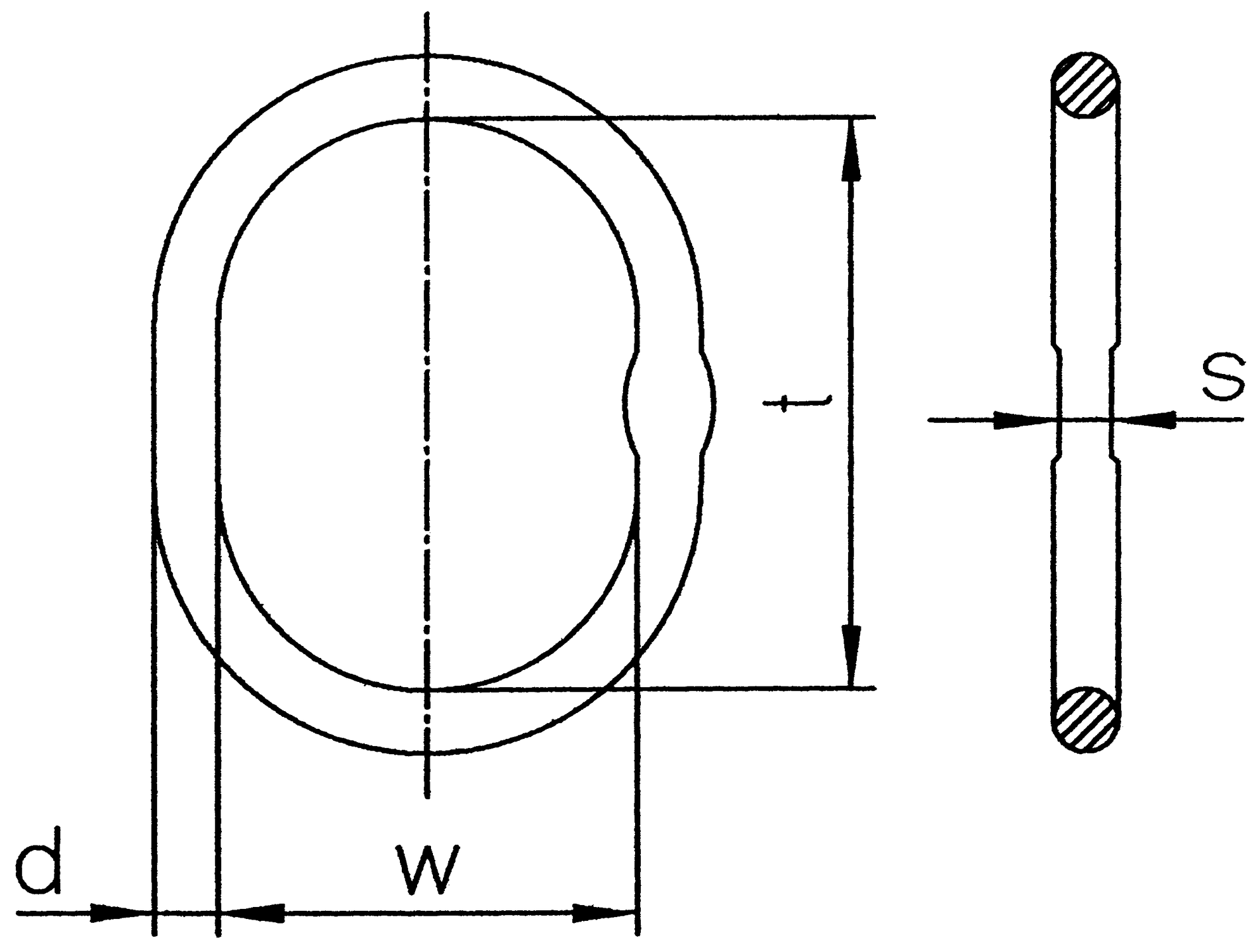

Art No Code WLL
Ton
s (mm) W (mm) Chain (mm) D (mm) t (mm) Weight
kg
CAD
11.021262 A/S-13-10 2.3 10 60 6 13 110 0.34
11.021256 A/S-16-10 3.5 14 60 7 16,5 110 0.53
11.021256 A/S-18-10 5 14 75 8 19 135 0.92
11.021257 A/S-22-10 7.6 17 90 10 23 160 1.6
11.021258 A/S-26-10 10 20 100 13 27 180 2.5
11.021259 A/S-32-10 14 26 110 16 33 200 4.1
11.02126 A/S-36-10 25.1 - 140 19 36 260 6.2
11.0270046 A/S-45-10 30.8 180 22 45 340 13
11.027005 A/S-50-10 40 190 26 50 350 17
